1. PC TO 2  VGA Monitors & 2 Audio line out.

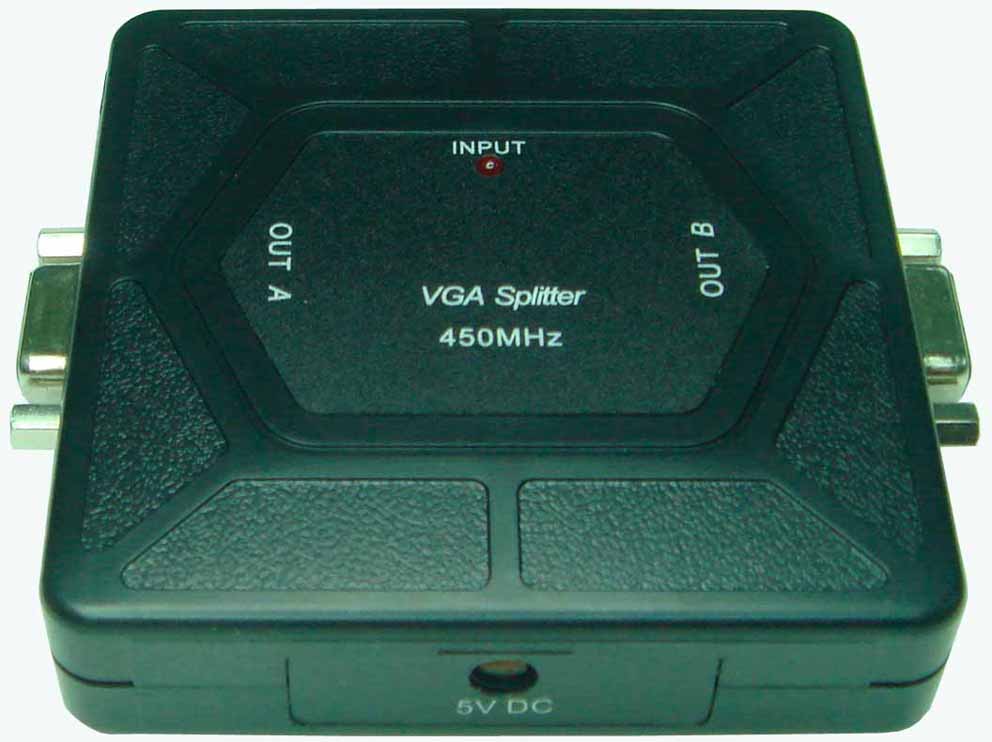

    VGS-210H  2 Ports VGA Splitter

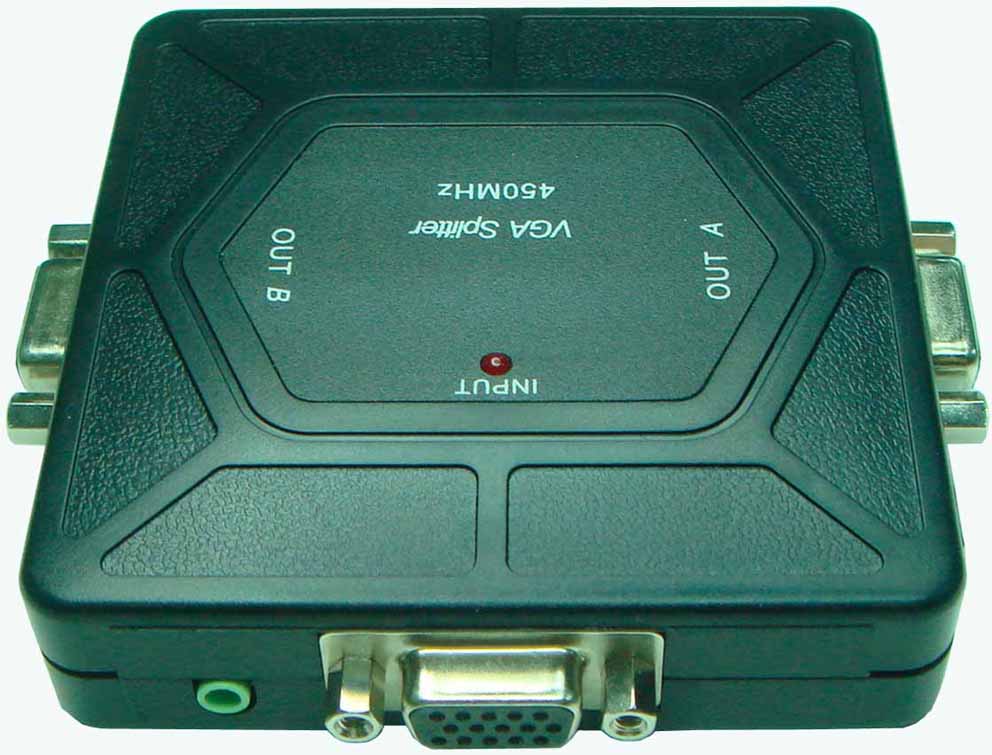

    VGS - 210-HA 2 Ports VGA-Audio Splitter

2. In /Out put : HD15/F * 3 , 3.5 Audio plug * 3

3. Power supply :DC 5V / 500MA (USB power cable)

4. Working current :  150 MA

5. LED indicate : 1 (Red) /  Function : Indicate  Power

6. VGA Bandwidth  : 30 ~ 450 MHZ  ( 680 * 480 ~ 2048*1536 )  ( H: 32 ~ 38.5KHZ) / ( V: 60 ~ 85 HZ )

7. With stereo audio op / 2-Ch Audio Bandwidth  : 20 ~ 30 KHZ

8. Audio out put : 0.5V~1.0V  Resistor : 75 R

9. Compatible to VGA,SVGA,MULTISYNC,G4,G3 Monitor

10. Dimension : 86 * 86 * 23 mm Weight : 95g

11. Operating temperature : -0 TO 70 C

12. Extend distances : 50 M (Using UL-2919 Cable)

Pin Assignment :

In put HD/15F  =>Out put HD/15F

(Red)       : 1  =>   HD/15F - PIN 1

(Green)    : 2  =>  HD/15F - PIN 2

(Blue)       : 3  =>  HD/15F - PIN 3

(HSYNC)   : 13 =>  HD/15F - PIN 13

(VSYNC)   : 14 =>   HD/15F - PIN 14

                : 12 =>  NC

                : 15 =>  NC
