USB to RS-232 Adapter / Cable (FTDI Chipset Install)
USB / Type-C to RS-232 (DB9-M) DTE Mode		USB / Type-C to RS-232 (DB9-F) DCE Mode
AUM-100-MA	AUM-100-FA-1	AUM-100-MAL	AUM-100-FAL
AUM-100-MC	AUM-100-FC-1	AUM-100-MCL	AUM-100-FCL
FTDI Chipset. AUM-100-MX is a USB to serial UART interface with full modem control l Standard USB TO RS-232 Adapter. Power free , Plug & Play l Fully compliant with USB Spec 3.X 2.0. Compliant USB Spec1.1. l Driver support: Win-XP, WinXX, MAC OS.-X ,Linux, Android l Connector:USB A Male / Type-C Male, RS-232 (DB9 Male) l Data rate: Over 1000kbps. ESD Protection for RS-232 I/O' +-15KV l RS-232 for DTE Mode l Power-LED Red , TX-LED Green , RX- LED Orange => indicate. l With 1.0 or 2.0 meter USB / Type-C cable l RS-232 (DB-9 Female) with screws and nuts	FTDI Chipset. AUM-100-FX-1 is a USB to serial UART interface with full modem control l Standard USB TO RS-232 Adapter. Power free , Plug & Play l Fully compliant with USB Spec 3.X 2.0. Compliant USB Spec1.1. l Driver support: Win-XP, WinXX, MAC OS.-X ,Linux, Android l Connector:USB A Male / Type-C Male, RS-232 (DB9 Female) l Data rate: Over 1000kbps. ESD Protection for RS-232 I/O' +-15KV l RS-232 for DCE Mode- w/RS-232 Null Modem. l Power-LED Red , TX-LED Green , RX- LED Orange => indicate. l With 1.0 or 2.0 meter USB / Type-C cable l RS-232 (DB-9 Female) with screws and nuts	FTDI Chipset. AUM-100-MXL is a USB to serial UART interface with full modem control l Standard USB TO RS-232 Adapter. Power free , Plug & Play l Fully compliant with USB Spec 3.X 2.0. Compliant USB Spec1.1. l Driver support: Win-XP, WinXX, MAC OS.-X ,Linux, Android l Connector: USB A Male / Type-C Male, RS-232 (DB9 Male) l Data rate: Over 1000kbps. ESD Protection for RS-232 I/O' +-15KV l RS-232 for DTE Mode. l With : Power / DCD / RXD / TXD / DTR / DSR / RTS / CTS / RI *LED9 l With 1.0 or 2.0 meter USB / Type-C cable l RS-232 (DB-9 Female) with screws and nuts**	FTDI Chipset. AUM-100-FXL is a USB to serial UART interface with full modem control l Standard USB TO RS-232 Adapter. Power free , Plug & Play l Fully compliant with USB Spec 3.X 2.0. Compliant USB Spec1.1. l Driver support: Win-XP, WinXX, MAC OS.-X ,Linux, Android l Connector: USB A Male / Type-C Male, RS-232 (DB9 Female) l Data rate: Over 1000kbps. ESD Protection for RS-232 I/O' +-15KV l RS-232 for DCE Mode- w/RS-232 Null Modem. l *With : Power / DCD / RXD / TXD / DTR / DSR / RTS / CTS / RI LED9 l With 1.0 or 2.0 meter USB / Type-C cable l RS-232 (DB-9 Female) with screws and nuts**
AUM-100 USB to RS-232 Cable	AUM-120 USB to 2 Port RS-232 Cable	AUM-140 USB to 4 Port RS-232 Cable	AUM-180 USB to 8 Port RS-232 Cable

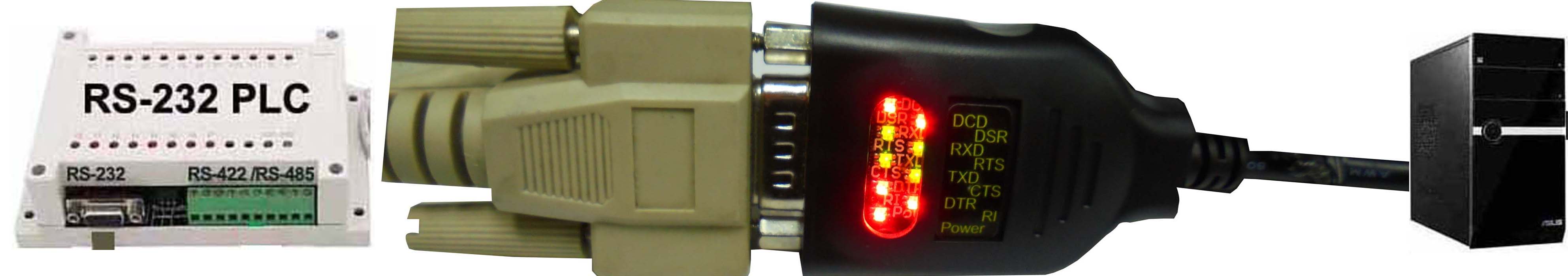

ASM-300 RS-232 to RS-232 Booster	AUM-100-XX-LED USB to RS-232 Cable w / LED Monitor

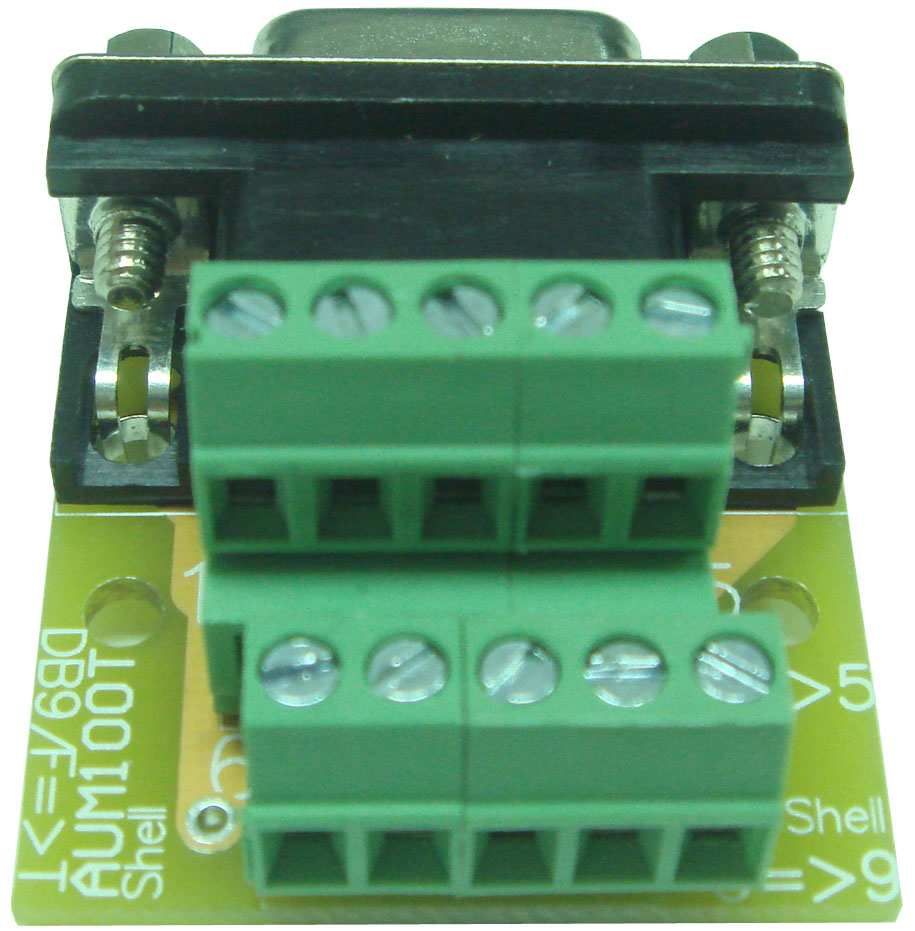

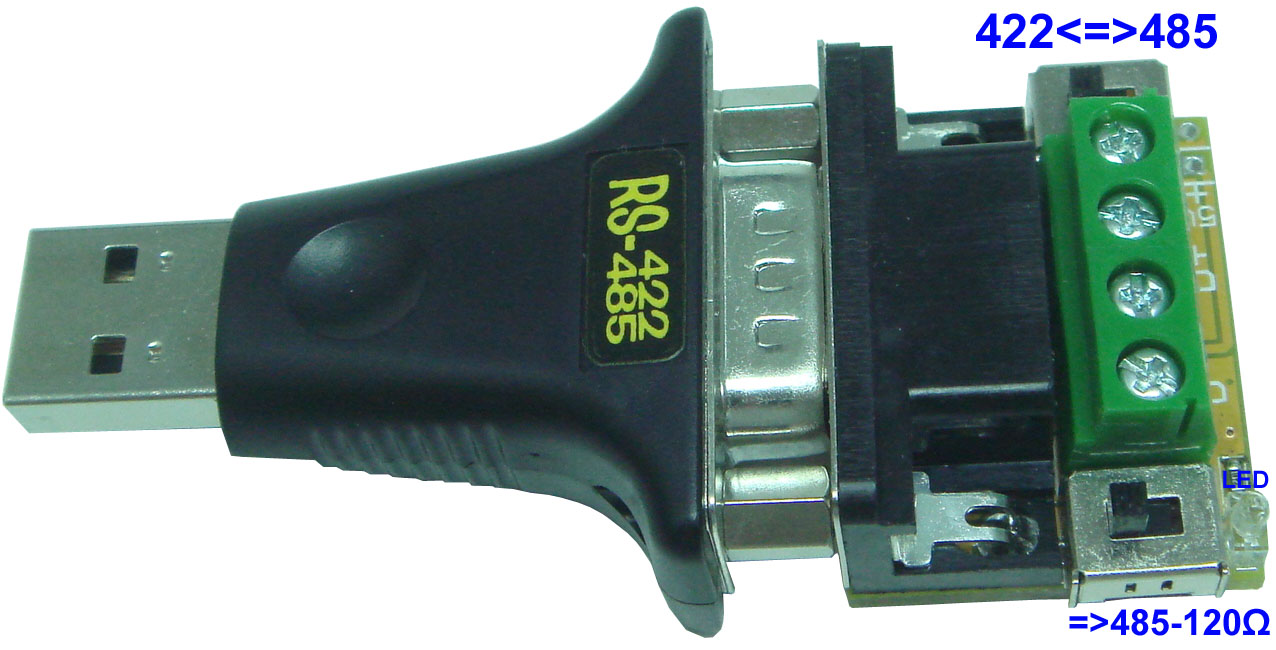

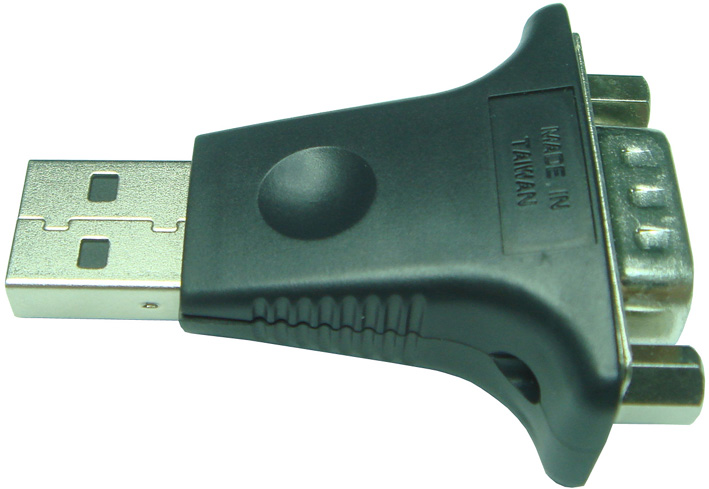

ASM-100T(M/F) DB9 10 PIN Terminate Platform		AUM-385 USB to RS-422/485	AUM-300 USB to RS-232 Adapter
